Introduction to Milling: Definition, Work, Operation and Process

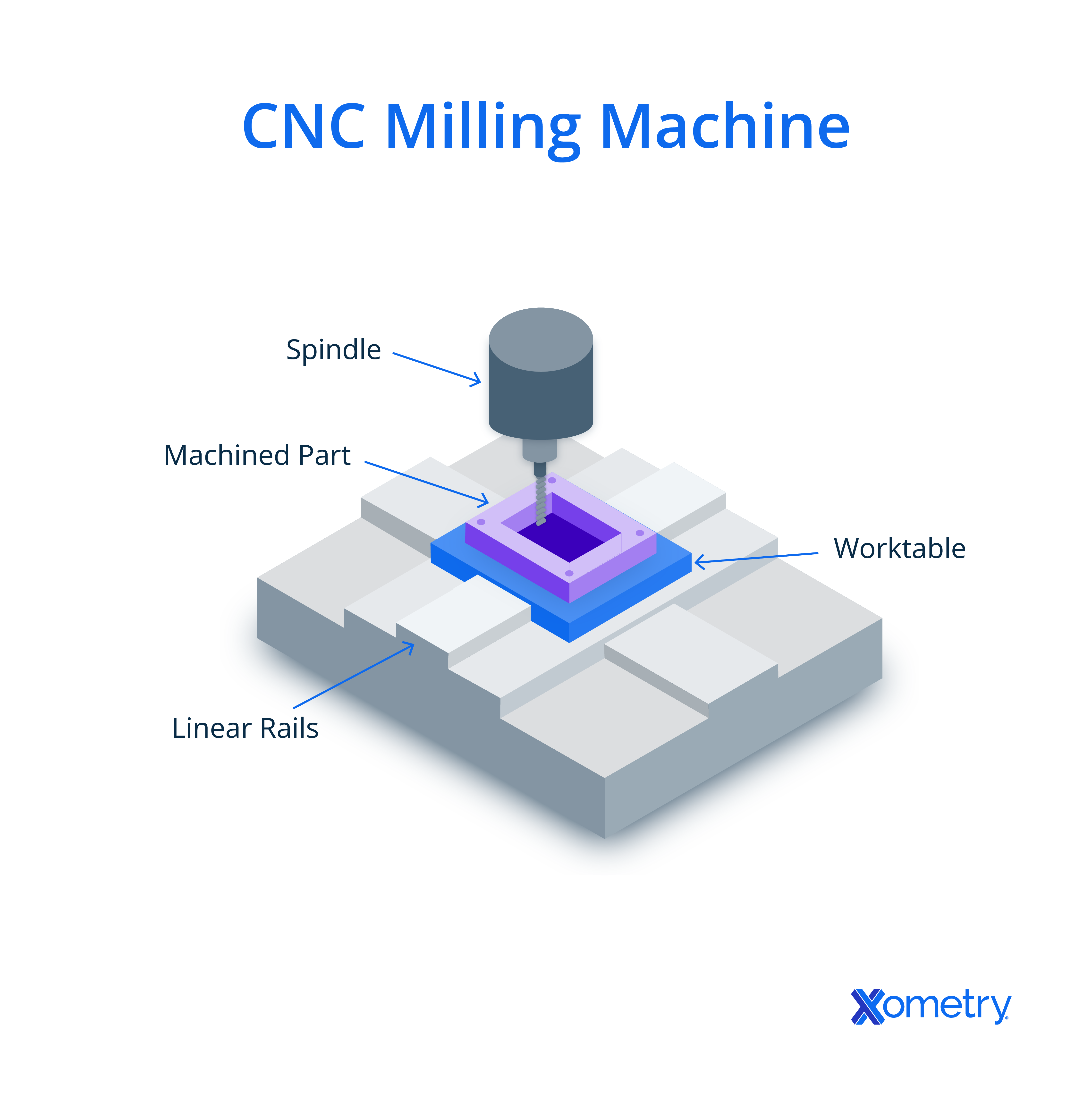

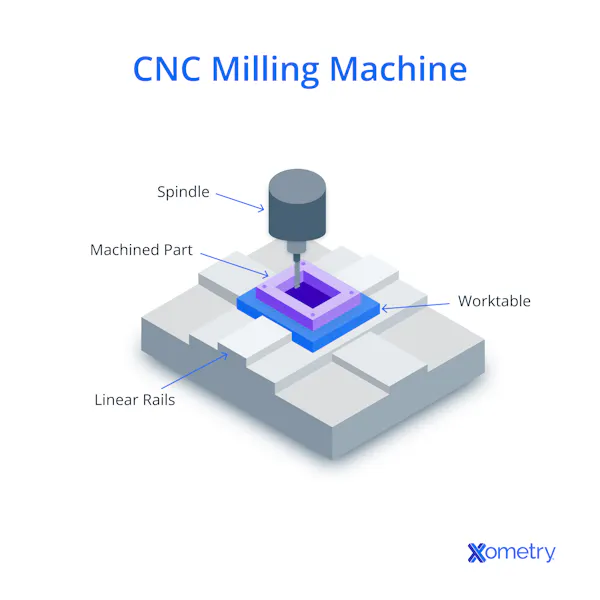

Yes, a milling machine diagram includes the spindle and worktable, which are the primary components. The spindle holds and rotates the cutting tool, while the worktable secures and moves the workpiece. The diagram shows their spatial relationship and how the table moves relative to the spindle. It depicts controls for adjusting their positions. Understanding these parts is crucial for setting up milling operations. The diagram provides a clear view of how the tool interacts with the material and helps troubleshoot movement or alignment issues. Safety features near the components are typically shown. The diagram is important for machine shop education, as understanding machine layout supports proper setup and operation.

A milling cutter is a rotating multi-edge tool used for subtractive material removal. The milling cutter has sharp teeth to shave off chips as the cutter spins, with each tooth acting as a separate cutting edge for high-speed operation. The cutter is mounted on the spindle and moved across the workpiece surface. Milling cutters come in various shapes (cylindrical, conical, spherical), and the material (carbide, high-speed steel, ceramics) depends on the workpiece hardness. The number of teeth affects surface finish and feed rate. The cutter performs tasks such as slotting, facing, and profiling; drilling is typically performed by drills, though milling can create holes via interpolation. Its tooth geometry determines the type of chip produced. High-quality cutters resist heat and wear, and their sharpness and accuracy are crucial for precision machining. The cutter is a consumable part, requiring replacement or sharpening. Efficiency and reliability are key to maintaining production standards.

How Does a Milling Cutter Perform Cutting Operations?

A milling cutter performs cutting operations by rotating at high speeds, engaging the material with multiple teeth. The spindle, driven by the motor, spins the tool while the workpiece moves into its path. Each tooth shears a small amount of material, generating heat and chips, which are evacuated from the cutting zone.

The rotation speed and feed rate determine chip thickness, and cutting can occur in the same direction as the feed (climb milling) or against it (conventional milling). Sharp tool edges ensure clean, precise material removal, with coolant applied to protect the tool and improve surface finish. The tool geometry defines the final shape of the feature, and machine stability prevents tool vibration during operation. The process continues until the desired dimensions are achieved, with accuracy dependent on the interaction between the cutter and material. The mechanical force enables the shaping of hard metals.

Are Milling Cutters Available in Different Shapes and Sizes?

Yes, milling cutters are available in different shapes and sizes to suit different machining needs. End mills (flat, ball nose, bull nose) are used for internal pockets and contours, while face mills, with larger diameters, clear material from flat surfaces. Slotting cutters create narrow grooves or keyways, and specialized cutters (t-slot, dovetail, woodruff) handle unique shaping tasks. The tool's diameter determines the size of the features it can create, with length variations offering deep reach or high rigidity for shallow cuts. Small-diameter tools are used for intricate details, while large tools are preferred for rapid material removal. Material coatings (TiN, TiAlN) enhance cutter durability. Tool selection depends on part geometry, material, and machining conditions; milling machines are versatile but not suitable for all machining tasks.

What Are the Main Parts of a CNC Machine Used in Milling?

The main parts of a CNC milling machine are listed below.

• Spindle: Rotates the cutting tool at controlled speeds for material removal. The component is the heart of the cutting action. High-precision bearings ensure stability during the rotation of the CNC Machine.
• Worktable: Holds and positions the workpiece along the X and Y axes. The table moves precisely according to the computer instructions. Fixtures are used to secure the part during high-speed operations.
• Column and Base: Provide the structural support and rigidity for the machine. The heavy frame dampens vibrations that could affect the surface finish. The base supports the entire weight of the equipment.
• Axis Drive Motors: Move the machine components along the X, Y, and Z axes. These motors receive signals from the controller for exact positioning. High-resolution encoders monitor the movement for accuracy.
• CNC Controller (Control Panel): Interprets the G-code and manages all machine operations. The interface allows the operator to monitor the process and make adjustments. The computer ensures the machine follows the pre-programmed toolpath.
• Automatic Tool Changer (ATC): Automatically switches cutting tools between different operations. The system increases efficiency by reducing the need for manual tool changes. A magazine holds various tools for the machining cycle.

How Do CNC Components Work Together in a Milling Machine?

CNC components work together through a central control system to execute a programmed toolpath. The controller processes digital code and sends signals to the axis drive motors, moving the worktable and spindle head to the exact coordinates. It adjusts the spindle speed for the specific cutting tool, and the tool changer selects and installs the required cutter.

Sensors provide real-time feedback to ensure accuracy, while the cooling system activates during cutting to manage temperature. The workpiece remains securely held, and the tool removes material. The coordination of movement and rotation enables accurate machining when proper setup, tooling, and parameters are applied. Automation enables continuous production with minimal human intervention, though operator oversight is still required. Reliability relies on the synchronization of all mechanical and electronic parts.

Do CNC Milling Machines Include a Spindle and Control Panel?

Yes, Computer Numerical Control (CNC) milling machines include a spindle and control panel as core components. The spindle provides rotational force for the cutting tools to remove material, while the control panel allows the operator to load programs and monitor the machine. The computer inside the panel interprets the G-code and directs the spindle’s actions, ensuring precision. These components work together to ensure accuracy, with spindle speed controlled through software settings on the panel. The control panel also displays diagnostic information and operational status. The components are essential for CNC milling, enabling controlled machining; high precision depends on overall system performance and process conditions.

How is CNC Programming Used in Milling Operations?

Computer Numerical Control (CNC) programming defines the toolpaths and cutting parameters to machine a part automatically. The process starts with a digital model in computer-aided design software, which is converted into instructions by computer-aided manufacturing software. The program controls the movement of the spindle and worktable, along with spindle speed, feed rate, and tool changes.

The program is uploaded to the machine controller for execution, ensuring each part is identical to the design. Simulations prevent tool collisions and errors, while the code optimizes material removal efficiency. Precision is achieved by following exact coordinates, allowing complex geometries that are impossible to machine manually. The method’s repeatability and accuracy make it the standard for modern industrial CNC programming.

What Role Does G-Code Play in CNC Milling?

G-code is the standardized programming language used to control Computer Numerical Control (CNC) milling machine movements. G-code consists of alphanumeric commands that specify tool movement, position, and feed rate (e.g., G01 linear interpolation, G02 circular interpolation). G-code also controls auxiliary functions like coolant and spindle start.

Each line of code represents a specific action, with the controller converting it into electrical signals for the motors. Proper G-code ensures high accuracy and speed, while errors can lead to tool breakage or damaged workpieces. Machinists may edit the code to optimize the process. Minor variations exist across CNC platforms, though the language remains universal. Accuracy in G-code is crucial for maintaining tight tolerances and automating complex manufacturing tasks.

Does CNC Milling Require Programmed Toolpaths for Accuracy?

Yes, CNC milling relies on programmed toolpaths to achieve the high accuracy required in modern manufacturing. The toolpath defines the exact route the cutting tool follows, ensuring it avoids obstacles and stays within dimensions. Without a program, the machine has no instructions for shaping the part.

The software maintains accuracy through precise coordinates and compensates for tool diameter and length. Programmed paths enable efficient creation of complex 3D shapes that are difficult or impractical to achieve manually. Movements are calculated to the thousandth of an inch for consistency, with the same program used for each part in a production run. Automation eliminates variability from manual adjustments, and the reliability of the process depends on the programming quality. Engineers use toolpaths to optimize operation time, with precision as the primary goal.

How Does Milling Differ from Grinding Machines?

Milling differs from grinding machines in terms of material removal methods and surface finish quality. Milling uses a rotating cutter with distinct teeth to remove large chips, making it faster for bulk material removal and rough shaping. Grinding, on the other hand, uses an abrasive wheel to shave off small particles, providing a finer surface finish with tighter tolerances. Milling creates distinct surface textures, while grinding produces smoother surfaces with higher precision. Milling tools are multi-point cutters (end mills, face mills), while grinding wheels are made of abrasive materials like aluminum oxide or silicon carbide. Milling is often used for shaping, while grinding machine is commonly used for finishing and precision work, especially on hardened materials.

What Are the Functional Differences Between Milling and Grinding?

The functional differences between milling and grinding lie in material removal rate and surface quality. Milling machines are designed for high-speed cutting, shaping part geometry and creating features (slots, holes, and pockets). Grinding focuses on surface refinement and precise final dimensions, with a much lower material removal rate.

Milling tools have a fixed number of cutting edges, while grinding wheels feature thousands of abrasive grains acting as tiny cutting points. Milling is effective for a wide range of materials, including hardened steels; grinding is commonly used for hard materials and finishing operations. The higher heat generated in grinding requires more effective cooling systems. Milling produces a rough surface requiring further processing, while grinding achieves a mirror-like finish and precise flatness. The choice between the two depends on the stage of the manufacturing process.

Is Milling Typically Used for Material Removal Rather Than Surface Finishing?

Yes, milling is typically used for material removal rather than surface finishing. The process shapes a raw block of material into a part, with high-speed cutters removing large amounts of material quickly. It defines the part's primary features and dimensions, with roughing and semi-finishing tasks being common.

Finishing passes improve the surface, though grinding achieves finer results. Milling leaves visible tool marks on the surface, requiring grinding or polishing for a smoother finish. The speed of milling makes it efficient for bulk shaping, focusing on geometric accuracy and volume removal. Milling operations aim to reach the target shape as quickly as possible, with high reliability for creating the structural form of the part. It remains the first choice in the early stages of fabrication.

How Does Milling Compare to Electrical Discharge Machining?

Milling and Electrical Discharge Machining (EDM) differ in material removal methods and the types of materials they handle. Milling uses physical contact and a mechanical cutting tool to remove material as chips, making it faster for removing large volumes from softer metals. EDM uses electrical sparks to erode material without contact, making it ideal for extremely hard materials that would wear out milling tools.

Milling requires the tool to be harder than the workpiece, while EDM works on any conductive material regardless of hardness. Milling applies mechanical force, which can deform thin parts, whereas EDM applies no mechanical force, preventing deformation. Milling is used for general shaping, while EDM is preferred for complex internal cavities. The Electrical Discharge Machining  produces a characteristic surface finish that may require secondary finishing depending on application requirements.

What Are the Advantages of EDM Compared to Milling?

The advantages of Electrical Discharge Machining (EDM) has advantages such as machining complex shapes in hard materials, its limitations include slower material removal rates and the requirement for electrical conductivity. The advantages lie in machining complex shapes in hardened materials and creating sharp internal corners that milling cutters cannot achieve. EDM applies no mechanical stress to the workpiece, making it ideal for delicate, thin-walled components.

The process excels in producing molds and dies with intricate details, handling hardened tool steels and exotic alloys (tungsten carbide) with ease. The absence of physical contact eliminates tool deflection, and EDM provides a consistent surface finish, even in complex geometries and deep cavities where milling tools might vibrate. EDM is well-suited for small holes and fine features; it may be used as a primary or secondary process depending on application. The choice between EDM and milling depends on material hardness and part complexity.

Does EDM Remove Material Without Contact Like Milling Does?

Yes, Electrical Discharge Machining (EDM) removes material without contact, unlike milling, which uses a physical cutter. The process uses electrical discharges between an electrode and the workpiece to melt and vaporize the material, with dielectric fluid flushing away the particles.  EDM has no mechanical contact, so there is no frictional tool wear, but electrode wear still occurs; deformation is minimized due to absence of cutting forces.

Milling relies on the physical strength of the cutter to shear material, while EDM uses electrical energy to erode material at a molecular level. EDM offers high precision and can access complex or hard-to-reach features, though accessibility depends on electrode or wire geometry. The absence of contact makes it ideal for fragile components, offering high accuracy without tool chatter or vibration. EDM remains a staple for specialized tools and die making.

How Does Milling Compare to Swiss Machining?

Milling is compared to Swiss Machining by how the workpiece is supported and the type of parts produced. The workpiece is clamped to a stationary or moving table, while Swiss machining uses a guide bush to support the workpiece near the cutting tool. Swiss machining is ideal for long, slender, small-diameter parts, whereas milling is better suited for larger parts and broader geometries (rectangular blocks and plates).

Swiss machines are lathes with milling capabilities, providing high concentricity and precision on small components, under 1.25 inches in diameter. Milling machines move the tool or table across a wide area, while Swiss machines move the material through the headstock. Swiss machining excels in the high-speed production of small parts, while milling can handle much heavier workpieces(weighing hundreds of pounds).

Which Parts are Better Suited for Swiss Machining than Milling?

Yes, the parts that are better suited for Swiss Machining than milling are the guide bush support, which prevents bending during cutting, providing high concentricity that is difficult to achieve with a standard mill. Swiss machines perform turning and milling operations in a single setup, reducing production time. The method excels in high-volume production of small precision parts, making it essential for industries (medical and electronics). Milling is better for wider parts or with a low length-to-diameter ratio. Swiss machining applies cutting force close to the support point, ensuring reliability and precision for small parts, with the choice of method depending on part dimensions and required tolerance.

Is Swiss Machining More Suitable for Small Diameter Precision Parts?

Yes, Swiss machining is more suitable for small-diameter precision parts, due to the unique guide bush support that significantly reduces vibration and deflection. The design allows the material to be machined close to the support point, achieving tighter tolerances than standard machining methods. Swiss lathes specialize in parts 32 mm or less and perform multiple operations (drilling, threading, milling) simultaneously.

The process ensures consistent accuracy even for slender components. Swiss machining is used for high-precision instruments and connectors, with automated systems allowing lights-out manufacturing. Swiss machines provide better surface finishes on small cylindrical surfaces, with the guide bush's stability being key to its precision. The reliability in producing tiny components makes Swiss machining important in the precision manufacturing industry.

How Does Milling Handle Superalloys Like Inconel®?

Milling handles superalloys like Inconel® by using specialized tooling and controlled cutting parameters. The materials that are known for high strength and heat resistance, are difficult to machine with standard high-speed steel tools.Carbide or ceramic cutters are used to withstand extreme conditions. The process requires slower cutting speeds to avoid excessive heat buildup, and high-pressure coolant is necessary to protect the tool and evacuate chips. Tool wear is inevitable, and the machine must be rigid to prevent vibration during aggressive cutting. Strategic toolpaths help manage heat and prolong tool life. Engineers prefer the method for aerospace and gas turbine components, maintaining accuracy by monitoring tool wear and making adjustments. The material properties of Inconel Alloy require a careful machining approach.

What Tools and Settings Are Required to Machine Superalloys?

Machining superalloys requires high-performance tools and precise settings to manage material hardness. Carbide tools with coatings of Aluminum titanium nitride and Titanium aluminum nitride coatings (AlTiN or TiAlN) are commonly used for heat resistance and friction reduction. Ceramic tools are also employed for high-speed roughing of nickel-based alloys.

Spindle speeds are lower than for standard steel to minimize heat, and feed rates must be consistent to avoid work hardening. High-pressure coolant systems assist with chip evacuation and temperature control. The machine must provide high torque and rigidity to handle cutting forces.  Toolpaths often use controlled depth of cut and engagement depending on strategy; in superalloys, moderate engagement and avoiding dwell are critical, and tool geometry (including rake angle) is optimized to balance strength and cutting efficiency. Regular tool inspections are necessary for part quality, and machining technology continues to evolve with improved coatings. Reliability depends on the proper combination of tool and machine settings for machining superalloy material.

Do Superalloys Require Harder Cutting Tools Than Standard Steel?

Yes, Superalloys require harder cutting tools than standard steel due to their extreme heat and wear resistance. Superalloys ( Inconel® and Hastelloy®) quickly dull high-speed steel and basic carbide tools due to their high nickel and cobalt content, while standard steel undergoes machining effectively with those tools. Carbide tools designed for the alloys feature advanced grain structures for toughness, and coated tools provide a thermal barrier between the chip and the cutter. Ceramic cutters, which maintain hardness at high temperatures, are also used.

The tool must remain harder than the material at red-hot temperatures. Using the wrong tool causes rapid failure and damaged parts. Specialized tools cost more than standard ones, yet precision machining of superalloys depends on tool integrity and durability. Manufacturers invest in high-quality tooling for challenging applications, and the process remains complex but achievable with the right equipment applied to superalloys and Steel metal.

What Safety Precautions Should Be Taken While Operating a Milling Machine?

The safety precautions that should be taken while operating a Milling machine are the steps listed below.

1. Wear safety glasses. Protect the eyes from flying metal chips and coolant spray. The glasses must have side shields for maximum protection. High-velocity chips can cause permanent eye damage during the operation.
2. Secure the workpiece properly. Ensure the part is firmly clamped in a vice or on the table. A loose workpiece can be thrown from the machine at high speeds. Stability prevents tool breakage and potential injury to the operator.
3. Keep your hands away from the rotating cutter. Never reach into the machining area while the spindle is turning. The sharp teeth of the cutter cause severe lacerations instantly. Wait for the tool to stop completely before making any adjustments.
4. Remove loose clothing/jewelry. Avoid wearing anything that could get caught in the rotating spindle. Loose sleeves, ties, or necklaces are major safety hazards. Keep long hair tied back and away from the moving parts.
5. Use correct speeds and feeds. Prevent pushing the machine beyond its designed limits. Incorrect settings lead to tool failure and flying debris. Following the recommended parameters ensures a safe and stable machining process.

What Steps Ensure Operator and Machine Safety During Milling?

The steps that ensure operator and machine safety during milling are listed below.

1. Inspect the machine before use. Check for loose bolts, damaged guards, and proper lubrication. A well-maintained machine is less likely to fail unexpectedly. The inspection ensures all safety features are functional.
2. Clamp the workpiece firmly. Use the correct fixtures and tighten all clamps securely. The force of the rotating cutter is on an improperly secured part. Secure clamping is the foundation of a safe operation.
3. Check tool tightness. Ensure the milling cutter is properly seated in the collet or tool holder. A loose tool can be ejected from the spindle during high-speed rotation. Proper installation prevents tool damage and accidents.
4. Use guards and coolant properly. Keep all machine guards in place to contain chips and spray. The coolant should be directed at the cutting zone to prevent fire and smoke. Guards act as a physical barrier between the operator and the hazard.
5. Stop the machine before adjustments: Turn off the spindle and wait for it to stop before measuring or moving the part. Making changes while the tool is moving is the leading cause of shop injuries. The practice ensures the operator remains in control of the situation.

Is Wearing Protective Gear Mandatory While Operating a Milling Machine?

Yes, wearing protective gear is mandatory when operating a milling machine to ensure safety. Safety glasses with side shields protect the eyes from high-speed metal chips. Hearing protection is recommended or required depending on noise levels and regulations; steel-toed boots protect against falling objects and sharp debris. Gloves should not be worn while the machine is running to avoid entanglement in the spindle. Protective gear shields the body from flying debris and accidental contact with moving parts. Machine shops enforce strict safety equipment policies, reducing the risk of long-term health issues (hearing loss). Personal safety is everyone's responsibility, with safety gear providing essential defence in a hazardous environment. Health and safety take priority over accuracy and productivity, with reliability in the shop starting with a commitment to safety.
